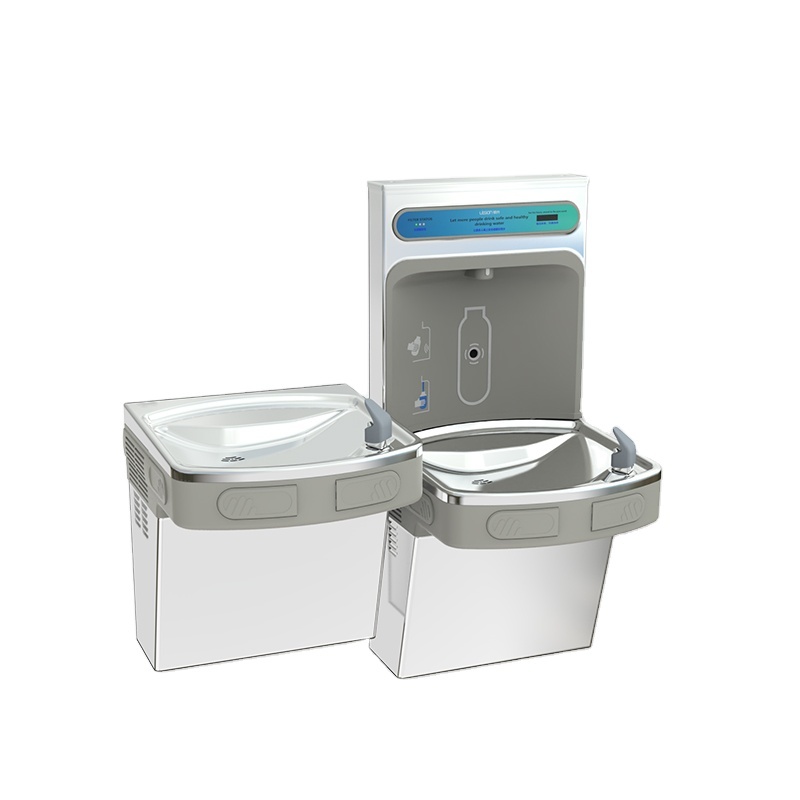

Hands Free Operation Wall Mounted Cold Drinking Fountain
The feature:
1. No Lead Design water system is free of lead-containing brass parts..
2. Barrier-Free ADA Design meets adult or child ADA standards when properly installed.
3.Extra Deep Basin minimizes splashing and its one-piece construction, with integrated drain, is vandal-resistant and easy to maintain.
4.Easy-Touch Controls for easy operation and increased durability.
5. Flexi-Guard Anti-Microbial Safety Bubbler complements styling of cooler and is keyed into position to prevent rotation.
6. Easy-To-Install Universal Design adapts easily to existing plumbing systems.
7. Stainless steel Cabinet standard.
8. Brushed stainless steel finish with heavy-duty galvanized steel mounting frame

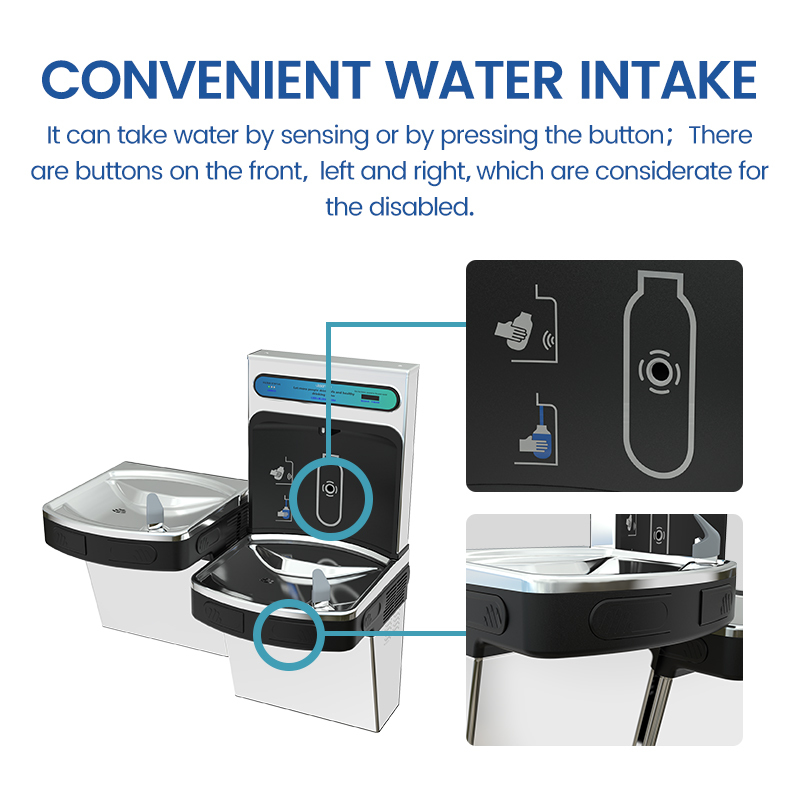

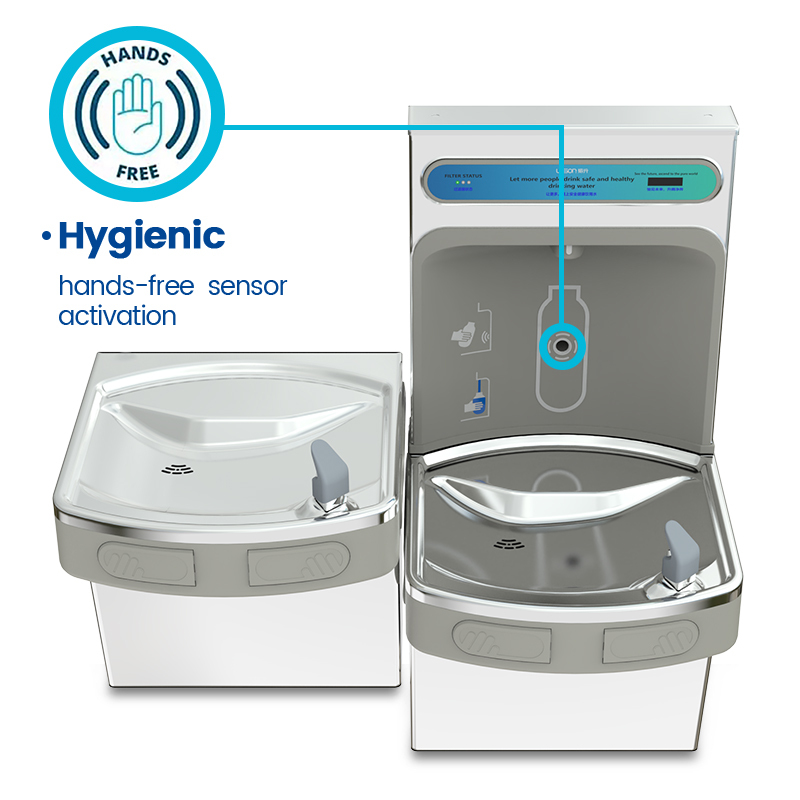

Touchless, Hygienic hands-free sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler).

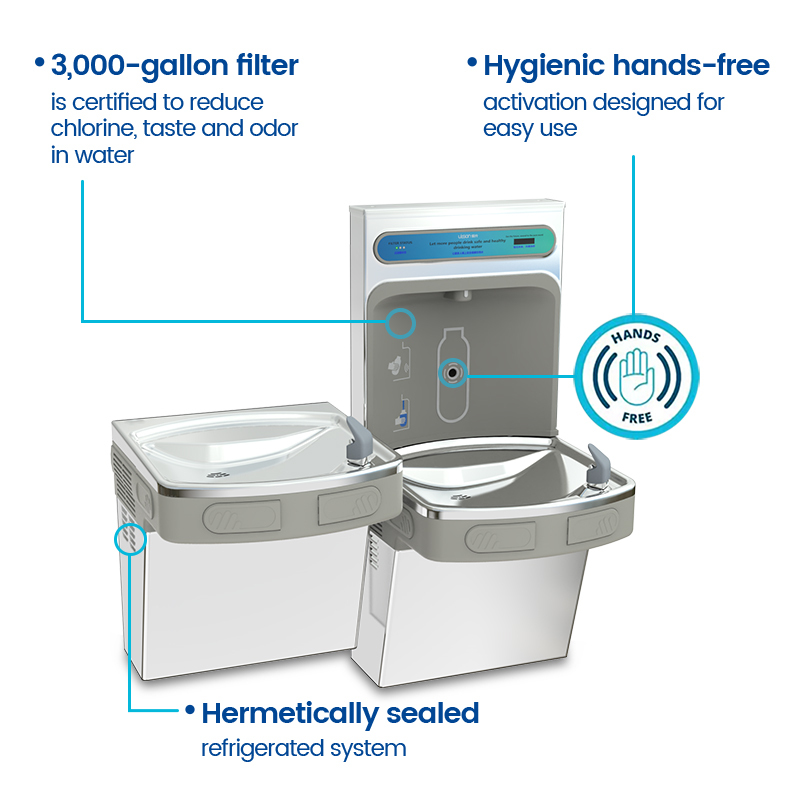

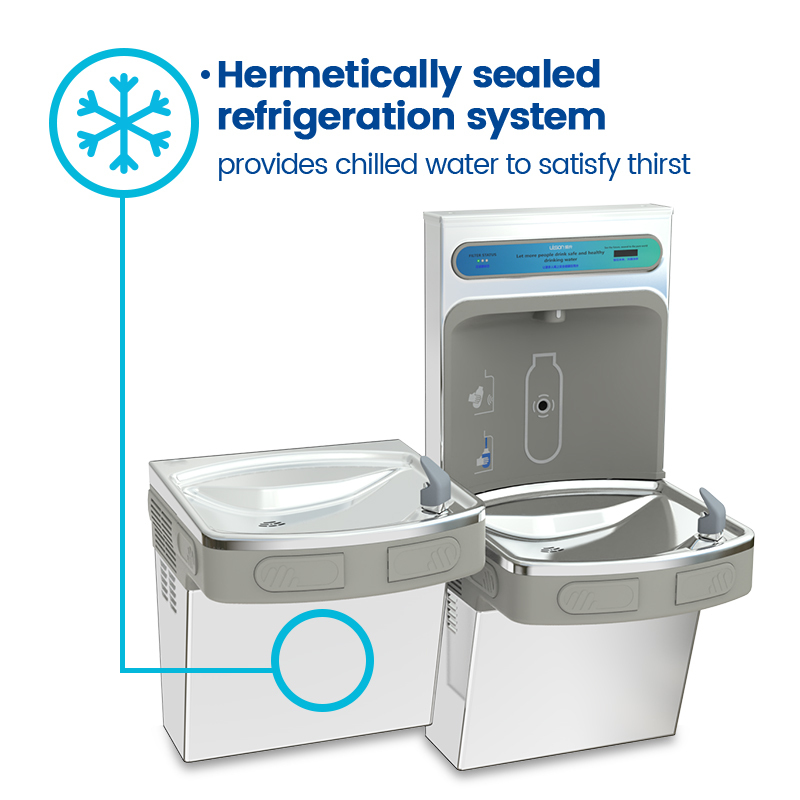

Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash.
Real drain system eliminates standing water.
High-performance compressor and insulation reduce energy consumption.
The Galvanized steel frame and stainless steel cabinet.
Vandal-resistant bubblers feature stainless steel integral hood guard to prevent contamination from other users, airborne deposits and tampering.
Rated for indoor use.
The electronic push bar activated solenoid valves provide easy activation
Sensor activated bottle filler allows for hands free operation, and intuitive LED electronic display keeps the user informed with how many plastic bottles have been saved. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
| ITEM | SPECIFICATIONS |
| Description | Drinking water cooler |
| Mount | Wall mounted |
| Material | 304 stainless steel |
| Finish | Brush finish or mirror finish |
| Hand free operation | Yes |
| Inlet pipe | 1/4 in |
| Waste pipe | 1-1/4" stainless steel |
| Water supply | Drinking water |
| Inlet water pressure | 0.1-0.7Mpa |
| Fillter | Out of the fountain or in the fountain |
| Environment temperature | 5-45℃ |
| Outlet water temperature | Ambient temperature |
| Cold water | Optional |
|
Filter system |
PP+CTO |
| Refrigerant Type | R134a |
